Description

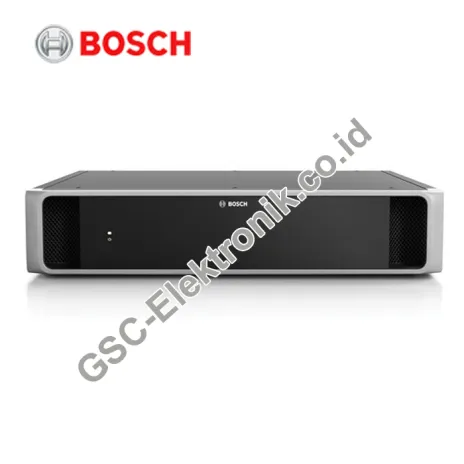

DCNM-PS2 Powering switch
Commercial Type No.: DCNM-PS2
Product No.: F.01U.308.937

- Zero network configuration
- Fully compatible to the Ethernet (IEEE802.3) and OMNEO standard
- Supports loop‑through connection with cable redundancy
- Standby mode to be environment friendly

Details :
Supply voltage : 100‑240 Vac 50‑60 Hz
Power consumption : 530 W
System supply : 48 Vdc
Total power supply : 3x 144 W + 15 W
Mounting : Tabletop or mounted in a 19” rack
Dimensions (H x W x D) :
for tabletop use, with feet : 92 x 440 x 400 mm(3.6 x 17.3 x 15.7 in)
for 19” rack use, with brackets : 88 x 483 x 400 mm(3.5 x 19 x 15.7 in)
in front of brackets : 40 mm (1.6 in)
behind brackets : 360 mm (14.2 in)
Weight : 7.4 kg (16.31 lbs)
Color : Traffic black RAL 9017Pearl light grey RAL 9022
Operating temperature : 0 ºC to +45 ºC(-32 ºF to +113 ºF)
Storage and transport temperature : -20 ºC to +70 ºC(-4 ºF to +158 ºF)
Relative humidity : < 96 %, > 5 %
